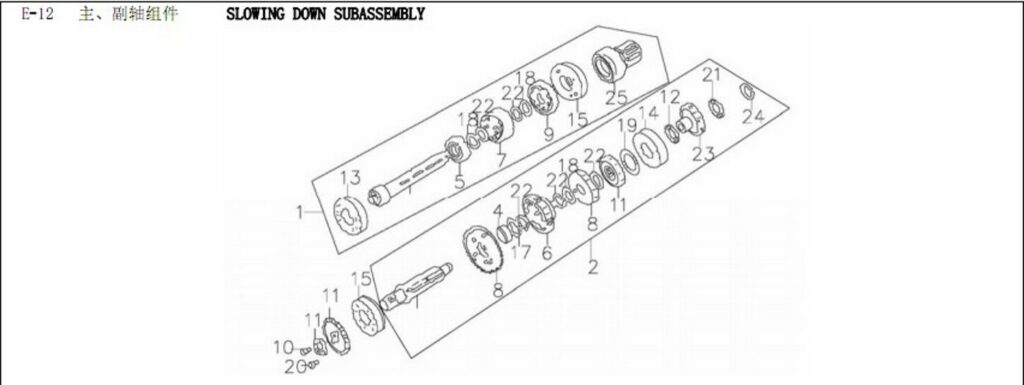

Zpomalování podsestavy
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Hřídel převodu 101020-0176 | Skladem | 1 582,68 Kč | ||
| 2 | TRANSMISSION COUNTENSHAFT 101020-0177 | Skladem | 1 715,25 Kč | ||
| 3 | GEAR WHEEL 101020-0178 | 1 | |||
| 4 | GEARED SLEEVE 101020-0179 | 1 | |||
| 5 | GEAR WHEEL 101020-0180 | 1 | |||
| 6 | SPLINE SHAFT DRIVER GEAR 101020-0181 | 1 | |||
| 7 | SPLINE SHAFT MAIN DRIVEN GEAR 101020-0182 | 1 | |||
| 8 | GEAR WHEEL 101020-0183 | 1 | |||
| 9 | GEAR WHEEL 101020-0184 | 1 | |||
| 10 | SPLINE SHAFT GEAR WHEEL 101020-0185 | 1 | |||
| 11 | DRIVE SPROCKET 101020-0186 | Skladem | 197,92 Kč | ||
| 12 | SRIVE SPROCKET CLOSING RING 101020-0187 | Skladem | 38,38 Kč | ||
| 13 | BEARING 101020-0188 | Skladem | 335,86 Kč | ||
| 14 | BEARING 101020-0189 | Skladem | 335,86 Kč | ||
| 15 | BEARING 101020-0190 | Skladem | 335,86 Kč | ||
| 16 | THRUST WASHER 101020-0191 | 1 | |||
| 17 | SPLINE SHAFT WASHER 101020-0192 | 1 | |||
| 18 | SPLING SHAFT WASHER 101020-0193 | 3 | |||
| 19 | SPLING SHAFT WASHER 101020-0194 | 2 | |||
| 20 | BOLT 101020-0195 | 2 | |||
| 21 | SPLING SHAFT WASHER 101020-0196 | 1 | |||
| 22 | SHIELD RING 101020-0197 | 5 | |||
| 23 | STAR ROLLING GEAR 101020-0198 | 1 | |||
| 24 | SHIELD RING 101020-0199 | 1 | |||
| 25 | CLITCH GEAR SLEEVE 101020-0200 | Skladem | 340,25 Kč | ||
