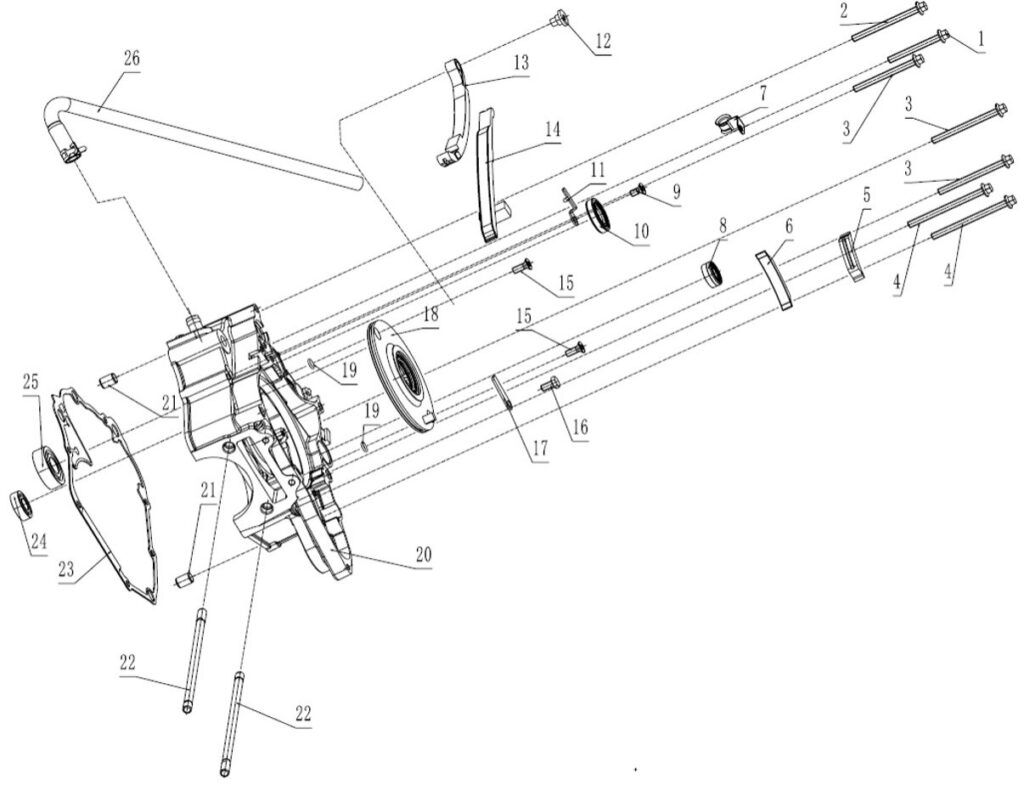

Levá polovina klikové skříně
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Bolt, M6×55 100031958-0007 | 1 | |||
| 2 | Bolt, M6×65 100011543-0001 | 1 | |||
| 3 | Bolt, M6×70 100031959-0007 | 3 | |||
| 4 | Bolt, M6×80 100031960-0007 | 2 | |||
| 5 | Assembly Chain Protect Plate 100061492 | 1 | |||
| 6 | Assembly Guide Plate 100061491 | 1 | |||
| 7 | Clip High Voltage Wire 100100000-0005 | 1 | |||
| 8 | Oil Seal 11.6×24×10 100104647 | 1 | |||
| 9 | Screw, M6×12 100031851-0004 | 1 | |||
| 10 | Oil Seal 17×29×5 100104696 | 1 | |||
| 11 | Gearshift Switch Pressing Plate 100104485 | 1 | |||
| 12 | Bolt 100100425-0001 | 1 | |||
| 13 | Tension Plate Assy 100200477 | 1 | |||
| 14 | Guide Plate Chain 100200500 | 1 | |||
| 15 | Screw, M6×16 100010972-0003 | 2 | |||
| 16 | Bolt, M6×12 100011171-0002 | 1 | |||
| 17 | Plate Start Clutch 100103247 | 1 | |||
| 18 | Disk Insulator 100060674 | 1 | |||
| 19 | O-Ring,φ6.5×1.8 100107798 | 2 | |||
| 20 | Left Crankcase Block 100055898-0003 | 1 | |||
| 21 | Pin,φ10×14 100010557 | 2 | |||
| 22 | Cylinder Stud Bolt A 100100267 | 2 | |||
| 23 | Gasket Crankcase 100208717 | 1 | |||
| 24 | BeaRing,(6001) 100100973 | 1 | |||
| 25 | BeaRing,(6203) 100100988 | 1 | |||
| 26 | Pipe Assy 100102977 | 1 | |||
