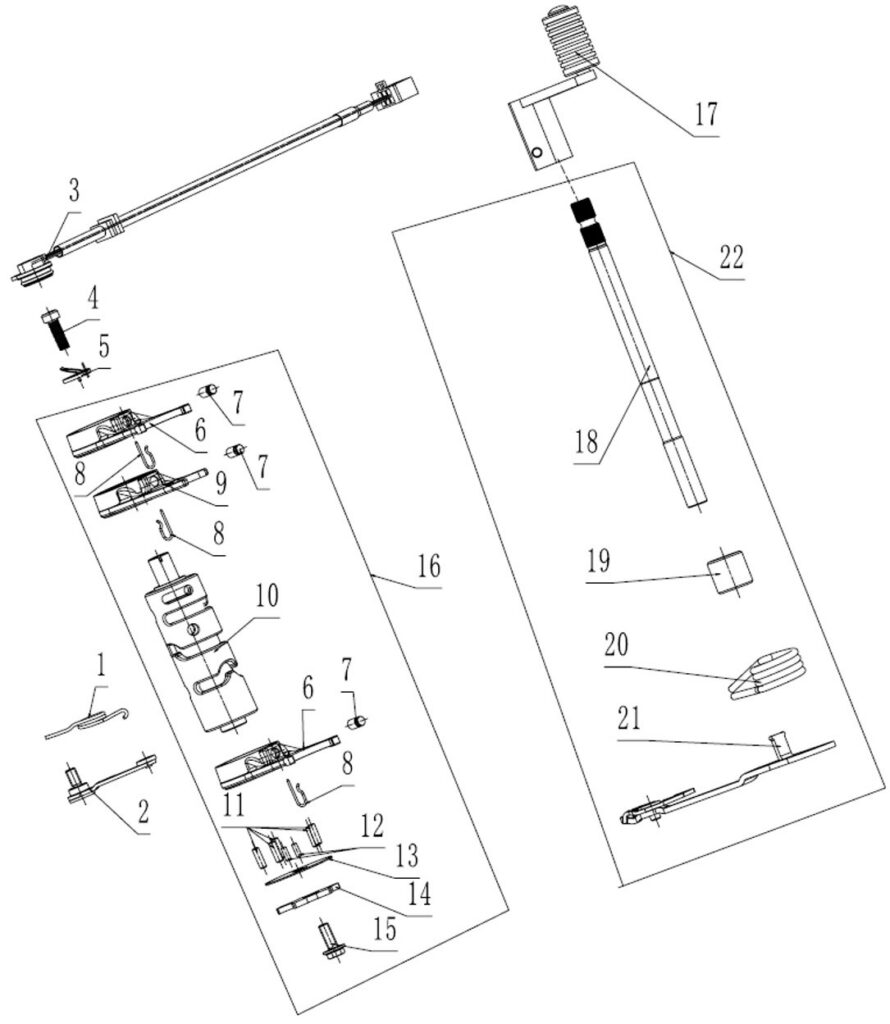

Mechanismus řazení
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | SpRing, Locating Plate 100203931 | 1 | |||
| 2 | Locating Plate Assy 100203961 | 1 | |||
| 3 | Gearshift Switch Lamp 100208389-0002 | 1 | |||
| 4 | Screw 100100466-0001 | 1 | |||
| 5 | Contact Cearindication 100104486 | 1 | |||
| 6 | Gearshift Fork 100062847 | 2 | |||
| 8 | Clip,Spring 100103892 | 3 | |||
| 9 | Gearshift Fork 100062848 | 1 | |||
| 10 | Gearshift Drum 100062905 | 1 | |||
| 11 | Pin φ4×13 100100901 | 5 | |||
| 12 | Pin φ3×8.5 100100887 | 2 | |||
| 13 | Press Plate Of Gearshift Drum 100203854 | 1 | |||
| 14 | Stopping Plate 100062846 | 1 | |||
| 15 | Bolt M6×16 100100419 | 1 | |||
| 16 | Gearshift Drum Comp 100061489 | 1 | |||
| 17 | Gearshift Shaft 100204006 | 1 | |||
| 18 | Gearshift Shaft Comp 100071615 | 1 | |||
| 19 | Sleeve Of Gearshift Lever Comp 100104000 | 1 | |||
| 20 | Return Spring 100103969 | 1 | |||
| 21 | Shift Arm Group 100071614 | 1 | |||
| 22 | Gearshift Lever Comp 100203866 | 1 | |||
