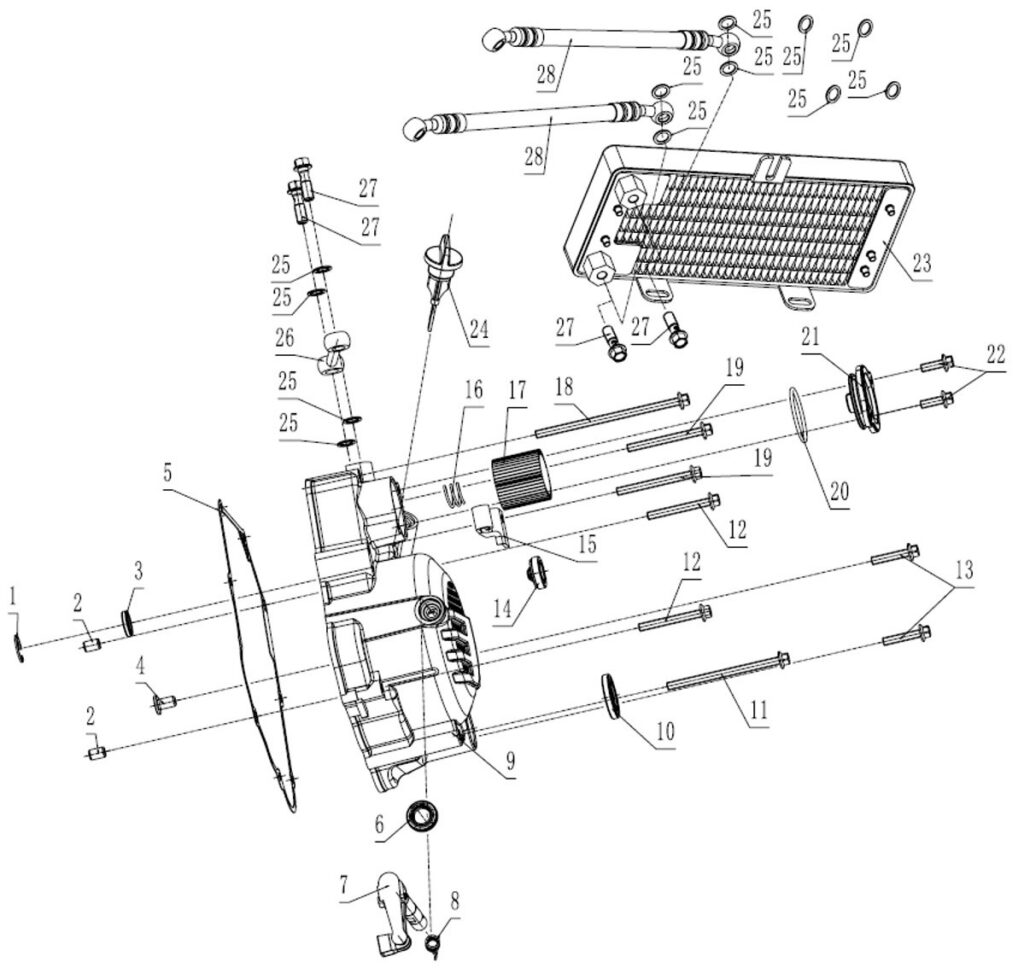

Pravý kryt klikové skříně
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Retaining Ring, 20 100032994 | 1 | |||
| 2 | Kolík kolíku, φ8 × 12 × φ6,3 100100867 | 2 | |||
| 3 | Oil Seal 12×20×5 100104807 | 1 | |||
| 4 | Pushing Rod Clutch 100203079 | 1 | |||
| 5 | Gasket R.Crankcase Cover 100208653 | 1 | |||
| 6 | Oil Seal 10×17×5 100104760 | 1 | |||
| 7 | Controlling Arm Assembly Clutch 100106292-0001 | 1 | |||
| 8 | Clutch Controlling Arm Spring 100203124 | 1 | |||
| 9 | Cover Comp Right Crankcase 100055897-0003 | 1 | |||
| 10 | Oil Seal 26×16×7 100104740 | 1 | |||
| 11 | Bolt, M6×90 100033089-0005 | 1 | |||
| 12 | Bolt, M6×50 100011540-0007 | 2 | |||
| 13 | Bolt, M6×30 100011536-0002 | 2 | |||
| 14 | Oil Lelve Sight Window 100101320 | 1 | |||
| 15 | Holder Cliutch Cable 100203112-0001 | 1 | |||
| 16 | SpRing,Oil Fine Filter 100100015 | 1 | |||
| 17 | Oil Filter 100200036 | 1 | |||
| 18 | Bolt, M6×115 100011546-0001 | 1 | |||
| 19 | Bolt, M6×60 100011542-0001 | 2 | |||
| 20 | O-Ring, φ38.6×2.6 100031588 | 1 | |||
| 21 | Cap Oil Filter 100204438-0002 | 1 | |||
| 22 | Bolt, M6×18 100011531-0007 | 2 | |||
| 23 | Oil Cooler Comp 100062064 | 1 | |||
| 24 | Oil Ruler Assy 100104873 | 1 | |||
| 25 | Washer,φ10×1×φ14 100106578 | 12 | |||
| 26 | Furel Pipe 100201818 | 1 | |||
| 27 | Bolt,M10×1.25 100100347-0001 | 4 | |||
| 28 | Oilpipe Assy 100201806 | 2 | |||
