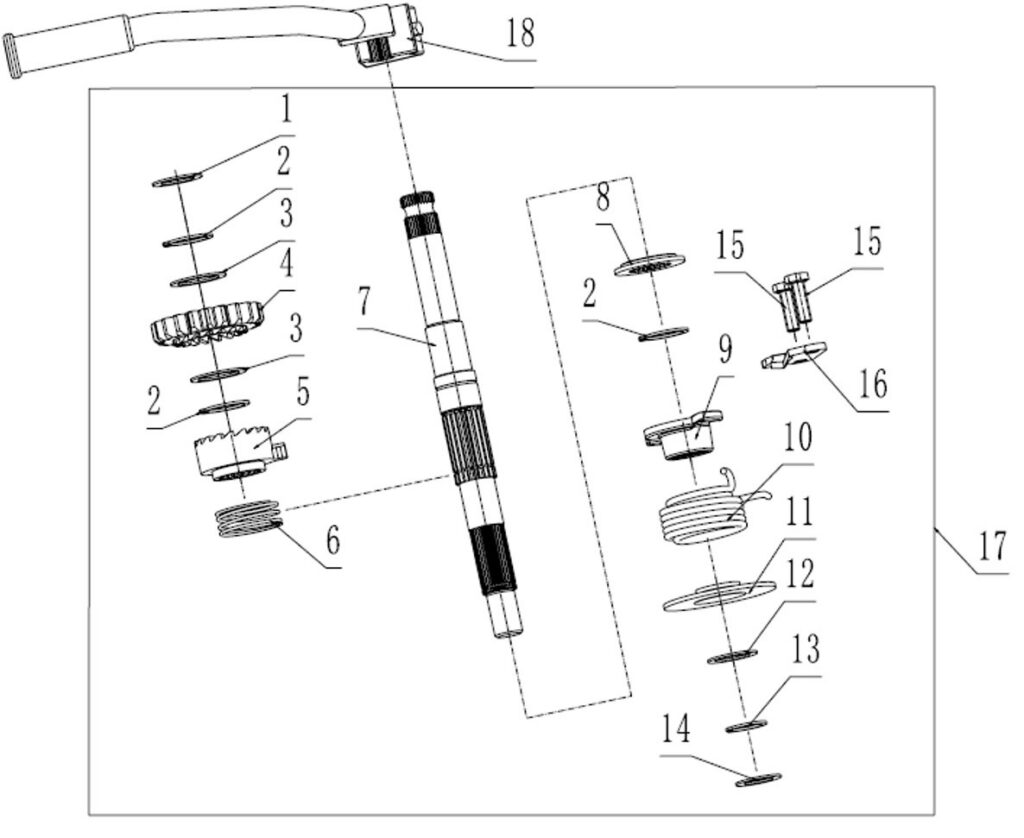

Sestava hřídele startovací páky
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Washer,φ16.1×1×φ24 100106512 | 1 | |||
| 2 | Circli,φ18.5×1.2×φ22.1 100100596 | 3 | |||
| 3 | Washer,φ20.1×1×φ27 100106524 | 2 | |||
| 4 | Gear Kick Starter 100105775 | 1 | |||
| 5 | Starting Ratchet 100303345 | 1 | |||
| 6 | SpRing,Kick Starting Ratchet Wheel 100105786 | 1 | |||
| 7 | Pivot Kick Starting Shaft 100063242 | 1 | |||
| 8 | SpRing,Support 100105790 | 1 | |||
| 9 | Seat SpRing,Kick Starting Shaft 100105736 | 1 | |||
| 10 | Return SpRing,Kick Starting Shaft 100303320 | 1 | |||
| 11 | Seat SpRing,Kick Starting Shaft 100303317 | 1 | |||
| 12 | Washer,φ17.2×1×φ24 100106518 | 1 | |||
| 13 | Circli,φ15.5×1.2×φ19 100100595 | 1 | |||
| 14 | Washer,φ14.1×1×φ22 100106508 | 1 | |||
| 15 | Bolt, M6×20 100011174 | 2 | |||
| 16 | Guide Plate 100303357 | 1 | |||
| 17 | Kick Starting Shaft Assembly 100061494 | 1 | |||
| 18 | Start-Up Bar Comp 100303421 | 1 | |||
