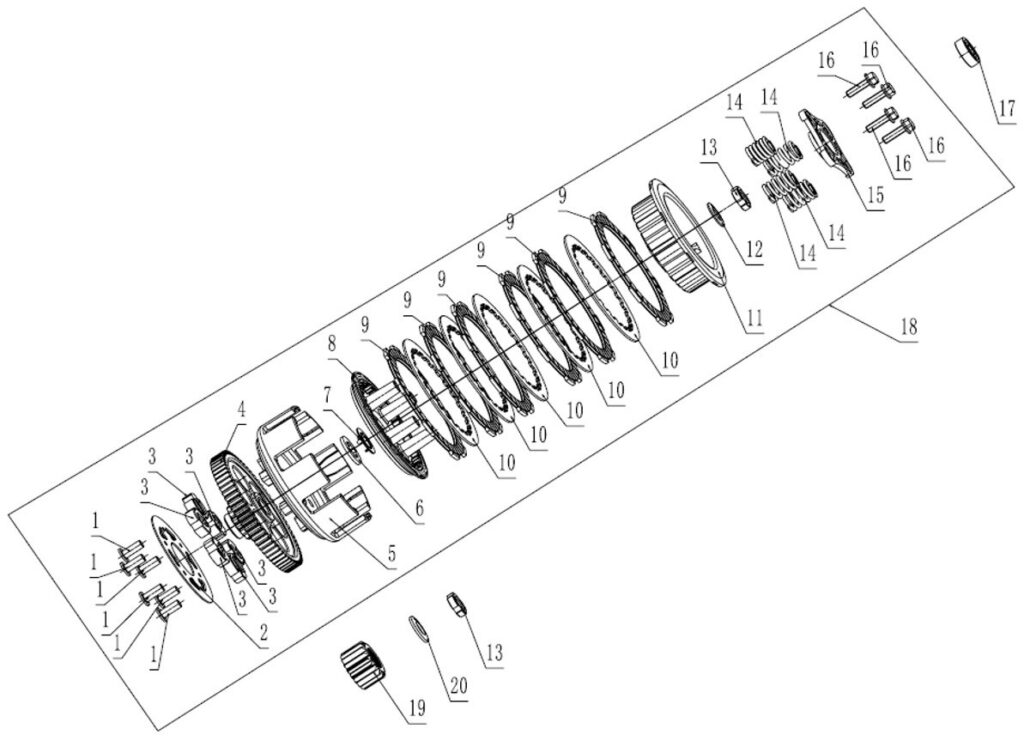

Sestava spojky
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Screw 100301454 | 6 | |||
| 2 | Clutch Driven Gear Cover 100107948 | 1 | |||
| 3 | Clutch Dash Pot Slipcover 100107896 | 6 | |||
| 4 | Gear 100057812 | 1 | |||
| 5 | Outer Cover 100057811 | 1 | |||
| 6 | Washer 100103340 | 1 | |||
| 7 | Fixing Ring,Clutch 100103350 | 1 | |||
| 8 | Pressure Plate Clutch 100301365 | 1 | |||
| 9 | Drive Friction Disk 100103413 | 6 | |||
| 10 | Outer Friction Disk A 100103420 | 5 | |||
| 11 | Center Sleeve Clutch 100301331 | 1 | |||
| 12 | Dish Washer,Clutch 100103344 | 1 | |||
| 13 | Lock Nut Clutch 100100514 | 2 | |||
| 14 | SpRing,Clutch 100103393 | 4 | |||
| 15 | End Cover Clutch 100301352 | 1 | |||
| 16 | Bolt, M6×22 100011267-0003 | 4 | |||
| 17 | BeaRing,6000 100031716 | 1 | |||
| 18 | Clutch Assembly 100062659 | 1 | |||
| 19 | Primary Drive Gear 100103481 | 1 | |||
| 20 | Dish Washer,Clutch 100202891 | 1 | |||
