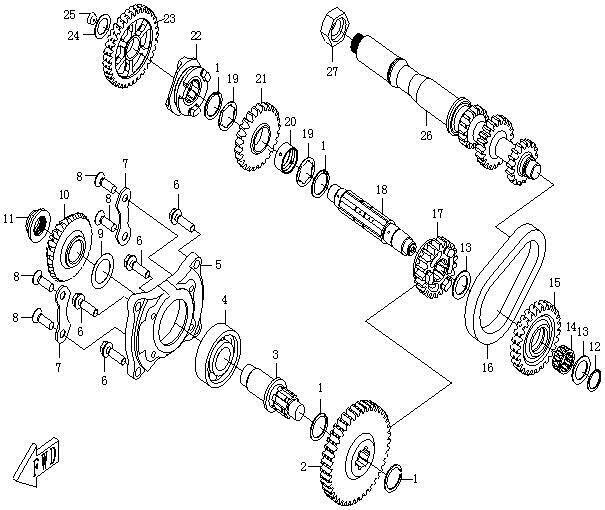

TRANSMISSION Ⅰ
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 02 | OUTPUT DRIVEN GEAR 0180-062102 | Skladem | 1 802,22 Kč | ||
| 03 | DRIVE BEVEL GEAR SHAFT 0180-062101 | Skladem | 854,50 Kč | ||
| 04 | Ložisko 30499-02501 | Skladem | 636,99 Kč | ||
| 05 | BEARING SEAT,DRIVE BEVEL GEAR 0180-062103 | Skladem | 466,09 Kč | ||
| 06 | BOLT M8×28 0110-060011-0030 | Skladem | 15,54 Kč | ||
| 07 | LIMITATOR, BEARING 0180-062104-0010 | Skladem | 46,61 Kč | ||
| 08 | SCREW M8X25 30124-080025810 | Skladem | 15,54 Kč | ||
| 09 | ADJUST GASKET, DRIVE BEVEL GEAR 0180-062105 | Skladem | 31,07 Kč | ||
| 10 | DRIVE BEVEL GEAR 0180-062106 | Skladem | 1 072,01 Kč | ||
| 11 | LOCK NUT, BEVEL GEAR 0180-062107-0010 | Skladem | 62,15 Kč | ||
| 12 | CIRCLIPS FOR SHAFT20 30801-02005 | Skladem | 15,54 Kč | ||
| 13 | GASKET 20.5x30x1.5 0180-061012 | Skladem | 31,07 Kč | ||
| 14 | NEEDLE BEARING 30402-02000 | Skladem | 145,08 Kč | ||
| 15 | SPROCKET, REVERSE GEAR 0180-061013 | Skladem | 854,50 Kč | ||
| 16 | CHAIN, REVERSE GEAR 0180-069000 | Skladem | 341,80 Kč | ||
| 17 | OUTPUT GEAR, COUNTERSHAFT 0180-061011 | Skladem | 916,65 Kč | ||
| 18 | DRIVEN SHAFT 0180-061001 | Skladem | 776,82 Kč | ||
| 19 | SPLINE WASHER 0180-061008 | Skladem | 15,54 Kč | ||
| 20 | BUSHING, DRIVEN HIGH RANGE GEAR 0180-061009 | Skladem | 124,29 Kč | ||
| 21 | DRIVEN GEAR, HIGH RANGE 018A-061010 | Skladem | 854,50 Kč | ||
| 22 | SLIDING BUSH, GEARSHIFT 0180-061006 | Skladem | 522,28 Kč | ||
| 23 | DRIVEN GEAR, LOW RANGE 0180-061005 | Skladem | 1 134,16 Kč | ||
| 24 | GASKET 17.5×26×1 0180-061003-0010 | Skladem | 31,07 Kč | ||
| 25 | PLUG 12, „BOWL-SHAPE“ 0180-061002-0010 | Skladem | 31,07 Kč | ||
| 26 | MAIN SHAFT, GEARSHIFT 018A-060004 | Skladem | 3 480,15 Kč | ||
| 27 | NUT, MAIN DRIVE SHAFT 0180-060003-0010 | Skladem | 62,15 Kč | ||
