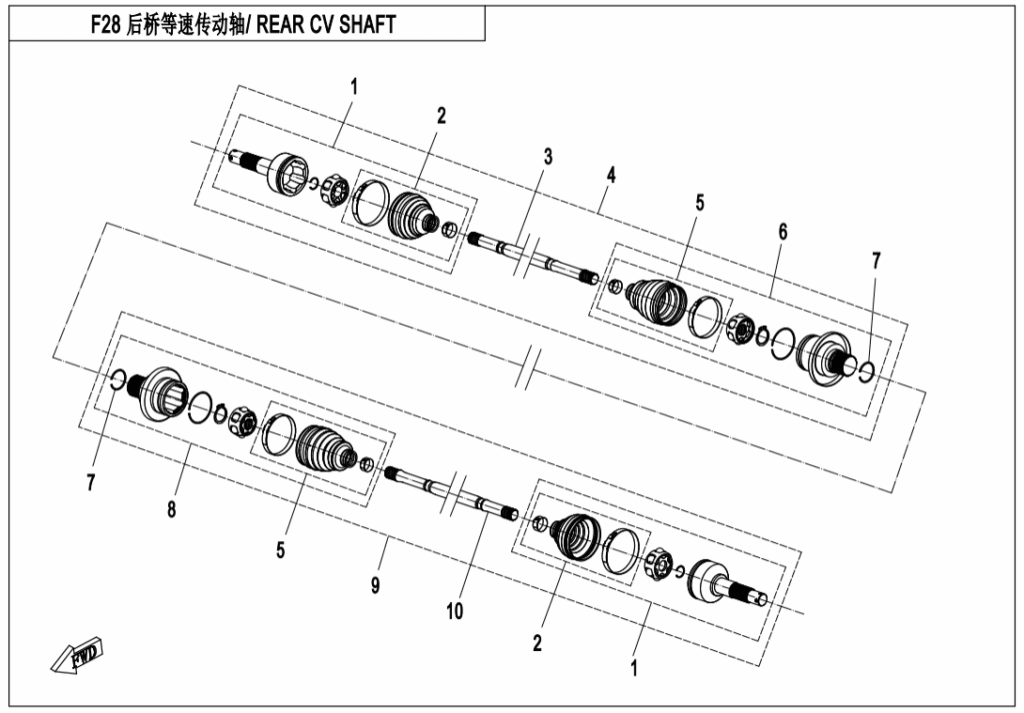

F28 REAR CV SHAFT
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BEARING KIT,FIXING END 7000-280170-30000 | Skladem | |||
| 01 | BEARING KIT,REAR FIXED END 7000-280270 | Skladem | 2 594,58 Kč | ||
| 02 | DUST BOOT, REAR FIXED END 7000-280260 | Skladem | 636,99 Kč | ||
| 02 | SEAL COVER ASSY., FIXING END 7020-280160-30000 | Skladem | 978,79 Kč | ||
| 03 | FRONT SHAFT 7000-280206-30000 | Skladem | |||
| 03 | REAR SHAFT, RH 7000-280206 | Skladem | |||
| 04 | REAR CV DRIVE SHAFT, RH 7000-280200-30000 | Skladem | |||
| 04 | REAR CV DRIVE SHAFT,RH 7000-280200-20000 | Skladem | 5 950,44 Kč | ||
| 05 | DUST BOOT, MOTION END 7020-280150-30000 | Skladem | 978,79 Kč | ||
| 05 | DUST BOOT,REAR MOTION END 7000-280250 | Skladem | 636,99 Kč | ||
| 06 | BEARING KIT, REAR MOTION END(LH) 7020-280140-30000 | Skladem | |||
| 06 | BEARING KIT, REAR MOTION END(RH) 7000-280240 | Skladem | 2 905,31 Kč | ||
| 07 | WIRE CIRCLIP 9010-280102 | Skladem | 31,07 Kč | ||
| 07 | WIRE CIRCLIP 9010-280102-00001 | Skladem | 31,07 Kč | ||
| 08 | BEARING KIT, REAR MOTION END(LH) 7000-280140 | Skladem | 2 905,31 Kč | ||
| 08 | BEARING KIT, REAR MOTION END(RH) 7020-280240-30000 | Skladem | |||
| 09 | REAR CV DRIVE SHAFT, LH 703A-280100-30000 | Skladem | |||
| 09 | REAR CV DRIVE SHAFT,LH 703A-280100-20000 | Skladem | 6 199,02 Kč | ||
| 10 | FRONT SHAFT 703A-280106-30000 | Skladem | |||
| 10 | REAR SHAFT, LH 703A-280106 | Skladem | |||
