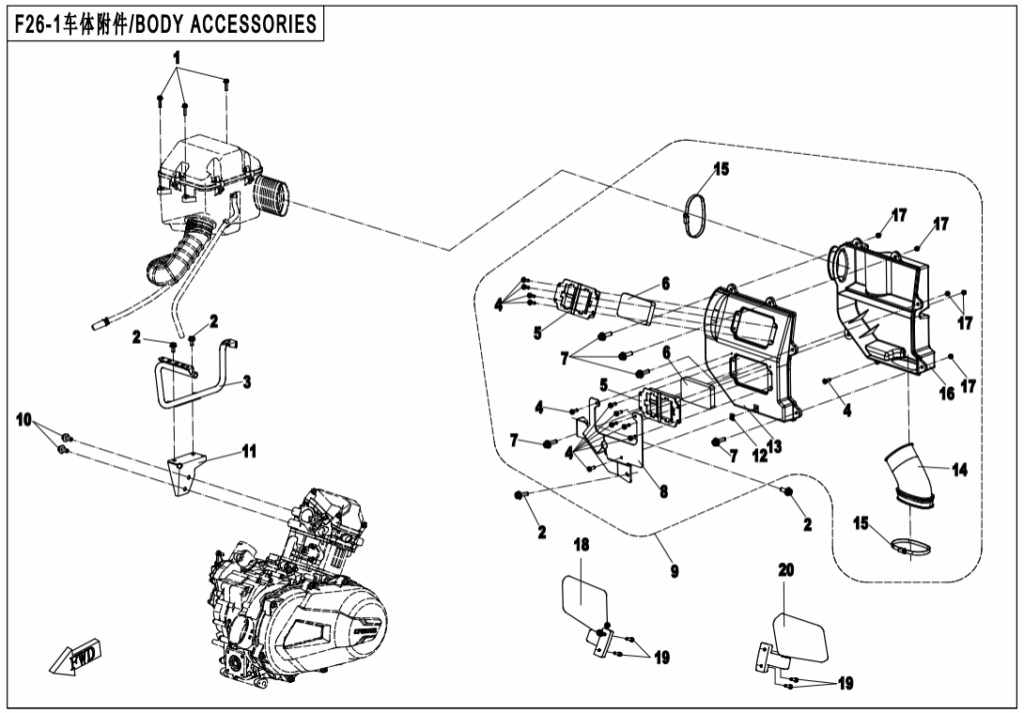

F26-1 BODY ACCESSORIES
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 02 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 03 | BRACKET, AIR FILTER 5UR0-260010 | Skladem | |||
| 04 | SELF-TAPPING SCREW ST4.2×16 30110-420160010 | Skladem | 15,54 Kč | ||
| 05 | BRACKET, PRIMARY ELEMENT 7030-260044 | Skladem | |||
| 06 | PRIMARY ELEMENT, AIR FILTER 7030-260043 | Skladem | 62,15 Kč | ||
| 07 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 08 | BRAKCET, AIR CHAMBER 7030-038321 | Skladem | |||
| 09 | AIR CHAMBER COMP. 7030-2600A0 | Skladem | |||
| 10 | Šroub 30006-103020810 | Skladem | 31,07 Kč | ||
| 11 | SEAT, AIR FILTER 5UR0-260040 | Skladem | 264,12 Kč | ||
| 12 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 13 | UPPER COVER, AIR CHAMBER 7030-260071 | Skladem | |||
| 14 | JOINT,AIR CHAMBER 7030-260073 | Skladem | |||
| 15 | A-TYPE CLAMP 78-101 9010-000105 | Skladem | 116,06 Kč | ||
| 16 | LOWER COVER,AIR CHAMBER 7030-260072 | Skladem | |||
| 17 | Matice 30220-060810 | Skladem | 15,54 Kč | ||
| 18 | REAR VIEW MIRROR, RH 7030-260120 | Skladem | 668,07 Kč | ||
| 19 | Šroub (vrut) 30102-060020810 | Skladem | 15,54 Kč | ||
| 20 | RERR VIEW MIRROR, LH 7030-260110 | Skladem | 668,07 Kč | ||
