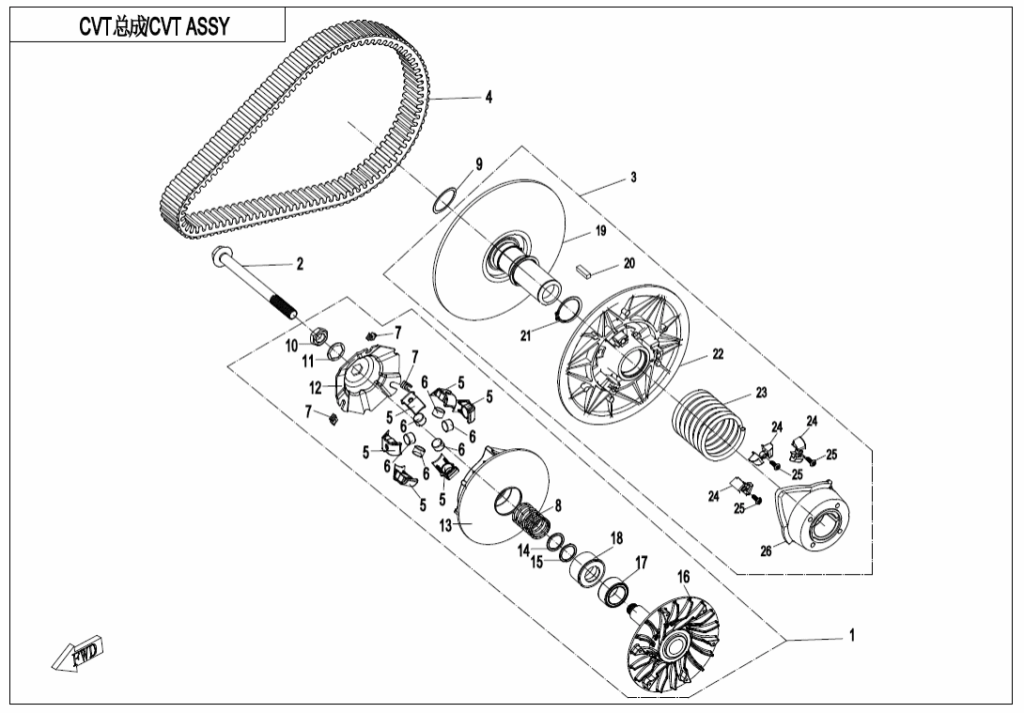

E05-A CVT ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | DRIVE PULLEY 0GRB-051000-10020 | Skladem | |||
| 01 | DRIVE PULLEY 0GRB-051000-00020 | Skladem | 21 797,57 Kč | ||
| 02 | BOLT, DRIVE PULLEY 0JY0-050001-00001 | Skladem | 130,57 Kč | ||
| 03 | PULLEY, DRIVEN 0GR0-052000 | Skladem | 16 515,19 Kč | ||
| 04 | ŘEMEN CVT 0180-055000-0004 | Skladem | 4 518,61 Kč | ||
| 04 | ŘEMEN CVT 0180-055000 | Skladem | 4 518,61 Kč | ||
| 04 | ŘEMEN CVT 0180-055000-0003 | Skladem | 4 518,61 Kč | ||
| 05 | NYLON PROTECTOR,WEIGHT ROLLER 0GR0-051005 | Skladem | 605,92 Kč | ||
| 06 | WEIGHT ROLLER 0GR0-051004-20000 | Skladem | 246,84 Kč | ||
| 07 | NYLON SLIDER 0GR0-051006 | Skladem | 559,31 Kč | ||
| 08 | SPRING,DRIVE PULLEY 0GR0-051003-20000 | Skladem | 528,24 Kč | ||
| 09 | ADJUSTING WASHER 0GR0-050001 | Skladem | 43,52 Kč | ||
| 10 | NUT, DRIVE PULLEY 0GR0-051008-00010 | Skladem | 1 087,55 Kč | ||
| 11 | HEXAGONAL BORE WASHER 0GR0-051007 | Skladem | 605,92 Kč | ||
| 12 | RAMP PLATE 0GR0-051002 | Skladem | 2 173,28 Kč | ||
| 13 | PRIMARY LOOSE PULLEY ASSY. 0GR0-051100 | Skladem | 13 299,16 Kč | ||
| 14 | STEEL WASHER 0GR0-051011 | Skladem | 403,95 Kč | ||
| 15 | NYLON WASHER 0GR0-051009 | Skladem | 403,95 Kč | ||
| 16 | PRIMARY TIGHT PULLEY ASSY. 0GRB-051200-20010 | Skladem | 20 104,10 Kč | ||
| 17 | Ložisko 0GR0-051400 | Skladem | |||
| 17 | Ložisko 0GR0-051400-10000 | Skladem | 5 566,00 Kč | ||
| 18 | SPRING SEAT 0GR0-051001 | Skladem | 2 035,27 Kč | ||
| 19 | DRIVEN FIXED PULLEY ASSY 0GR0-052100 | Skladem | 15 008,16 Kč | ||
| 20 | TAPER KEY 0GR0-052003 | Skladem | 124,29 Kč | ||
| 21 | CIRCLIP 0GR0-052004 | Skladem | 449,74 Kč | ||
| 22 | DRIVEN SLIDING PULLEY ASSY 0GR0-052200 | Skladem | 10 160,81 Kč | ||
| 23 | SPRING, DRIVEN PULLEY 0GR0-052001 | Skladem | 3 355,86 Kč | ||
| 24 | NYLON BLOCK 0GR0-052005 | Skladem | 449,74 Kč | ||
| 25 | Šroub (vrut) 0GR0-052006 | Skladem | 124,29 Kč | ||
| 26 | CAM PLATE 0GR0-052002 | Skladem | 4 070,54 Kč | ||
