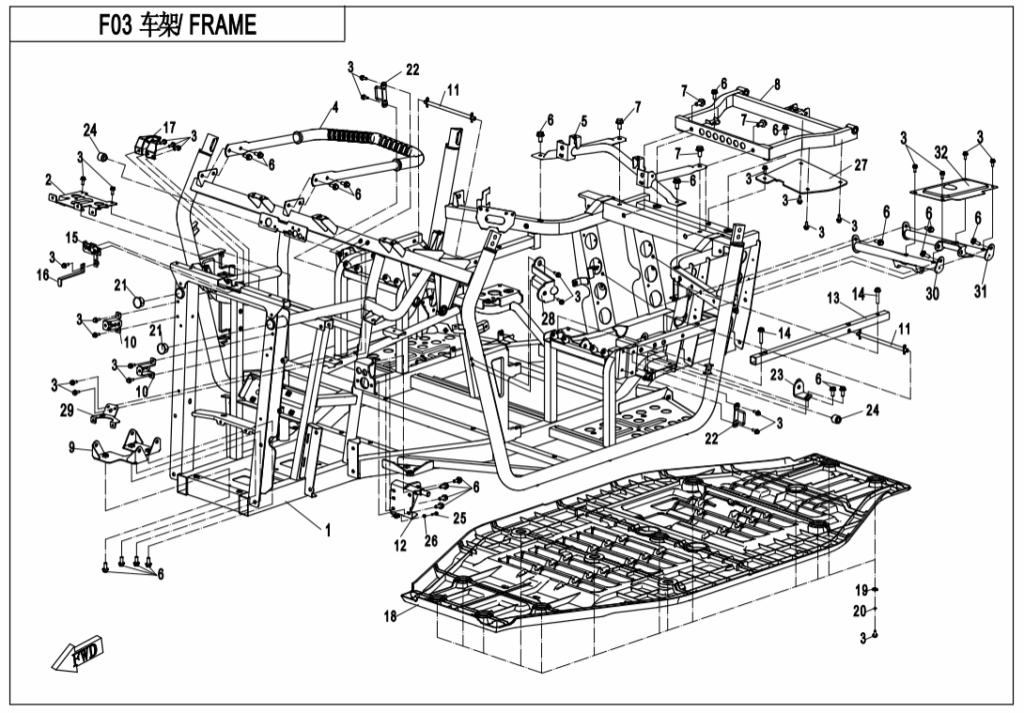

F03 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Hlavní Rám 5UWB-031000 | Skladem | |||
| 02 | UPPER BRACKET，RADIATOR 7030-037110 | Skladem | 326,26 Kč | ||
| 03 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 04 | FRONT ARMREST 7030-037210 | Skladem | |||
| 05 | BRACKET ASSY, SAFETY BELT BUCKLE 7030-037400-10000 | Skladem | |||
| 06 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 07 | Šroub 30001-102025810 | Skladem | 46,61 Kč | ||
| 08 | BRACKET, CARGO BOX 7030-037600-10000 | Skladem | |||
| 09 | BRACKET, FRONT AXLE 7030-038110-10000 | Skladem | 435,02 Kč | ||
| 10 | BRACKET，FRONT TOP COVER 7030-038210 | Skladem | 93,22 Kč | ||
| 11 | ROD,SEAT LOCK 7030-037810 | Skladem | |||
| 12 | BRACKET, FOOT PEDAL 7030-039110 | Skladem | |||
| 13 | INNER BEAM, LH SEAT 7030-037710 | Skladem | |||
| 14 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 15 | LOCK,FRONT COVER 7030-010200 | Skladem | 725,40 Kč | ||
| 16 | LEVER,FRONT COVER LOCK 7030-010201 | Skladem | 101,56 Kč | ||
| 17 | SUPPORT PLATE, SPRING 7030-040192 | Skladem | 108,75 Kč | ||
| 18 | BASE PLATE 7030-040711-10000 | Skladem | 3 992,85 Kč | ||
| 19 | BASE PLATE GASKET 9060-040028 | Skladem | 31,07 Kč | ||
| 20 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 21 | FRAME PLUG 9060-038123 | Skladem | |||
| 22 | LOCK HOOK 7030-370700 | Skladem | 174,09 Kč | ||
| 23 | REAR JOINT PLATE,ENGINE 7030-038711 | Skladem | |||
| 24 | CUSHION RUBBER 9030-370901-10000 | Skladem | |||
| 25 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 26 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 27 | HEAT INSULATOR，CARGO BOX 7030-030001 | Skladem | |||
| 28 | BRACKET,OIL STEEL PIPE 7030-030010 | Skladem | |||
| 29 | MOUNTING BRACKET, OIL CUP 5UWB-030120 | Skladem | |||
| 30 | FRONT MOUNTING COMP., REAR AXLE 5UWB-030300 | Skladem | |||
| 31 | REAR MOUNTING COMP., REAR AXLE 5UWB-030200 | Skladem | |||
| 32 | HEAT INSULATION PLATE，REAR AXLE 5UWB-030001 | Skladem | |||
