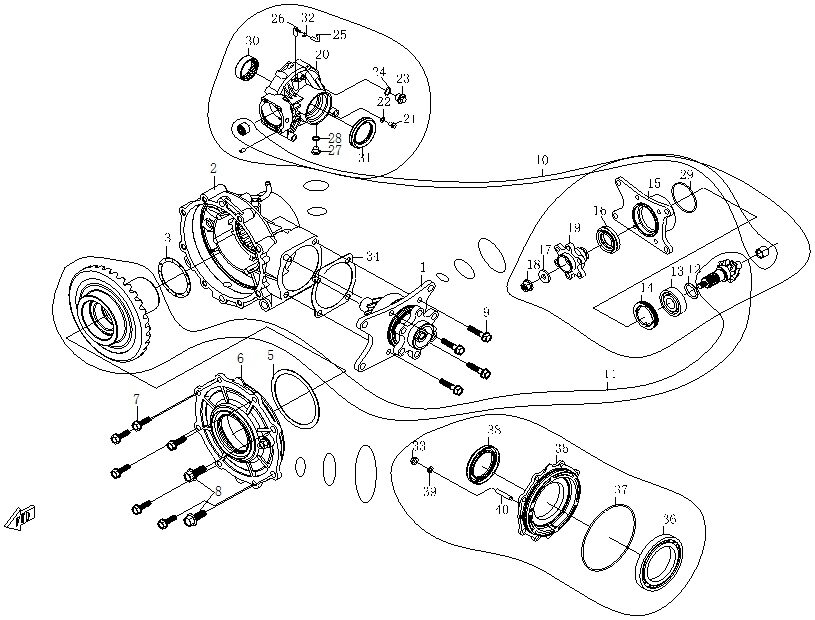

Zadní rozvodovka
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1-1 | DRIVE BEVEL GEAR ASSEMBLY, RA 0180-331000 | Skladem | 9 166,48 Kč | ||
| 2-1 | REAR GEAR CASE 0180-332000 | Skladem | 4 179,29 Kč | ||
| 3-1 | ADJUST SHIM(1) 1.0 0180-330001 | Skladem | 62,15 Kč | ||
| 3-2 | ADJUST SHIM(1) 1.2 0180-330001-0001 | Skladem | 62,15 Kč | ||
| 3-3 | ADJUST SHIM(1) 1.4 0180-330001-0002 | Skladem | 62,15 Kč | ||
| 3-4 | ADJUST SHIM(1) 1.6 0180-330001-0003 | Skladem | 62,15 Kč | ||
| 3-5 | ADJUST SHIM(1) 1.8 0180-330001-0004 | Skladem | 62,15 Kč | ||
| 5-1 | ADJUST SHIM(2) 0.2 0180-330002 | Skladem | 46,61 Kč | ||
| 5-2 | ADJUST SHIM(2) 0.3 0180-330002-0001 | Skladem | 46,61 Kč | ||
| 5-3 | ADJUST SHIM(2) 0.4 0180-330002-0002 | Skladem | 46,61 Kč | ||
| 6 | RING GEAR BEARING HOUSING 0180-334000 | Skladem | 2 392,61 Kč | ||
| 7 | BOLT SET 30008-080025810 | Skladem | 29,02 Kč | ||
| 8 | Šroub 0180-330004-0030 | Skladem | 29,02 Kč | ||
| 9 | BOLT SET 30008-080035810 | Skladem | 15,54 Kč | ||
| 10 | INNER & OUTER RACE 30403-01700 | Skladem | 372,87 Kč | ||
| 11-1 | BEVEL GEAR COMP. REAR AXLE 0180-330010 | Skladem | 6 276,71 Kč | ||
| 12 | ADJUST SHIM 0180-331012 | Skladem | 46,57 Kč | ||
| 13 | BEARING 16017/C2 30400-02502 | Skladem | 290,16 Kč | ||
| 14 | BEARING RETAINER 0180-331003 | Skladem | 201,97 Kč | ||
| 15 | BEVEL GEAR BEARING HOUSING 0180-331005 | Skladem | 776,82 Kč | ||
| 16 | OIL SEAL 0180-331007 | Skladem | 101,56 Kč | ||
| 17 | Podložka 0180-331008-0050 | Skladem | 43,52 Kč | ||
| 18 | Matice 0180-331009-0020 | Skladem | 43,52 Kč | ||
| 19-1 | COUPLER, REAR AXLE 0180-331010-0050 | Skladem | 1 072,01 Kč | ||
| 19-2 | COUPLER, REAR AXLE 0180-331010-1050 | Skladem | 1 227,38 Kč | ||
| 20-1 | REAR GEAR CASE 0180-332001-0080 | Skladem | 3 045,13 Kč | ||
| 20-2 | REAR GEAR CASE 0180-332001-1080 | Není skladem | |||
| 21 | Šroub 0180-332002-0020 | Skladem | 29,02 Kč | ||
| 22 | GASKET 0180-334004 | Skladem | 31,07 Kč | ||
| 23 | Šroub 0180-332003-0030 | Skladem | 58,03 Kč | ||
| 24 | O-SEAL RING 19×2.5 0180-332004 | Skladem | 15,54 Kč | ||
| 25 | BREATHER HOSE, FRONT GEAR CASE 9010-310001 | Skladem | 62,15 Kč | ||
| 25 | BREATHER PIPE 0180-332005 | Skladem | 201,97 Kč | ||
