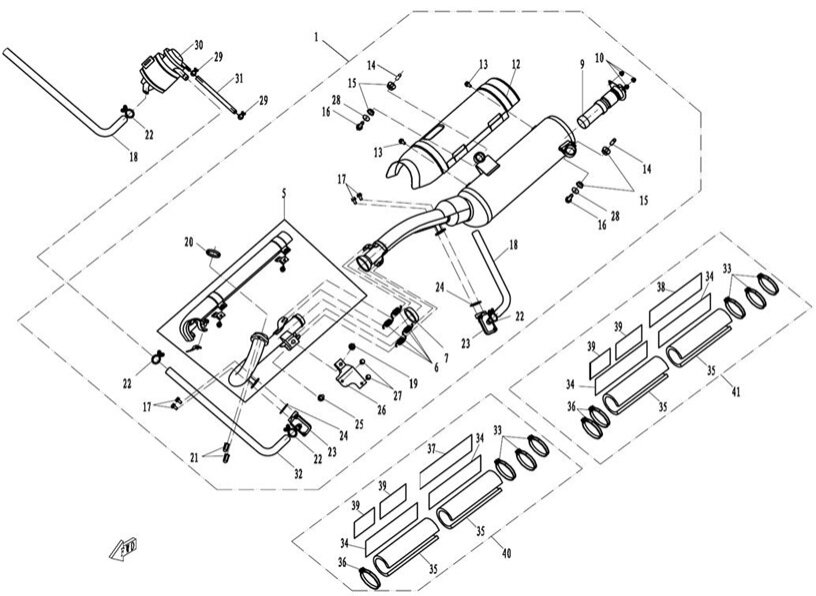

Výfuk karburátor
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1-1 | MUFFLER ASSY. 9050-0201B0 | Skladem | 12 040,71 Kč | ||
| 1-2 | MUFFLER COMP. 905A-0201B0 | Není skladem | 11 869,81 Kč | ||
| 2 | EXHAUST PIPE PROTECTOR 9010-020120-1000 | Není skladem | |||
| 3 | CLAMP 9010-020101 | Skladem | 101,64 Kč | ||
| 4 | Šroub 30006-060020840 | Skladem | 15,54 Kč | ||
| 5 | EXHAUST PIPE 9010-0201A0 | Skladem | 963,26 Kč | ||
| 5 | EXHAUST PIPE 9010-0201A0-1000 | Není skladem | |||
| 6 | SPRING, MUFFLER 9010-020185 | Skladem | 31,07 Kč | ||
| 7 | COLLAR 9010-020102-1000 | Skladem | 155,36 Kč | ||
| 9 | TAIL PIPE, EXHUAT 9050-020150 | Skladem | 310,73 Kč | ||
| 10 | Matice 30206-060540 | Není skladem | |||
| 11 | DAMPING COLLAR，MUFFLER 6050-020106 | Skladem | 15,54 Kč | ||
| 12 | HEAT INSULATION COVER，MUFFLER 9010-020140 | Skladem | 497,16 Kč | ||
| 14 | SPACER ，MUFFLER 9010-020184 | Skladem | 58,03 Kč | ||
| 15 | RUBBER CUSHION，MUFFLER 9010-020186 | Skladem | 62,15 Kč | ||
| 16 | Šroub 30006-080040840 | Skladem | 31,05 Kč | ||
| 17 | Šroub 30006-060016840 | Skladem | 15,54 Kč | ||
| 18 | AIR INLET HOSE,CHECK VALVE 9010-020004 | Skladem | 93,22 Kč | ||
| 19 | NUT M10×1.25 30204-080840 | Skladem | 15,54 Kč | ||
| 20 | GASKET，EXHAUST PIPE 0180-022300 | Skladem | 108,75 Kč | ||
| 21 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 22 | CLIP 30601-116020 | Skladem | 15,54 Kč | ||
| 23 | AIR SUPPLY CHECK VALVE 8030-020120 | Skladem | 377,21 Kč | ||
| 24 | GASKET, CHECK VALVE 8030-020101 | Skladem | 62,15 Kč | ||
| 25 | Šroub 30006-080020840 | Skladem | 15,54 Kč | ||
| 26 | FRONT SUPPORT, MUFFLER 9010-020003 | Skladem | 155,36 Kč | ||
| 27 | Šroub 30006-060012840 | Skladem | 15,54 Kč | ||
| 28 | RUBBER CUSHION，MUFFLER 9010-020187 | Skladem | 15,54 Kč | ||
| 29 | CLAMP A7 30601-107010 | Skladem | 15,54 Kč | ||
| 30 | INTAKE CONTROL VALVE 9010-020500 | Skladem | 186,44 Kč | ||
| 31 | VACUUM TUBE 9010-120550 | Není skladem | |||
| 32 | AIR INLET TUBE,CHECK VALVE 9010-020008 | Skladem | 93,22 Kč | ||
| 33 | SCREW CLAMP，A-TYPE 9010-020007 | Skladem | 116,06 Kč | ||
| 34 | HEAT INSULATION PAPER 9010-020009 | Skladem | 46,61 Kč | ||
| 35 | FIBERGLASS NEEDLED MAT 9010-020005 | Skladem | 101,56 Kč | ||
| 36 | SCREW CLAMP，A-TYPE 9030-000109 | Skladem | 116,06 Kč | ||
| 37 | REAR HEAT INSULATOR,ALUMINIUM 4020-020001 | Skladem | 188,60 Kč | ||
| 38 | REAR HEAT INSULATION PLATE, ALUMINIUM 402A-020001 | Skladem | 261,14 Kč | ||
| 39 | FRONT HEAT INSULATION PLATE, ALUMINIUM 4020-020002 | Skladem | 145,08 Kč | ||
| 40 | HEAT INSULATOR, MUFFLER 4020-0200A0 | Skladem | 901,11 Kč | ||
| 41 | HEAT INSULATOR, MUFFLER 4020-0200B0 | Skladem | 481,63 Kč | ||
