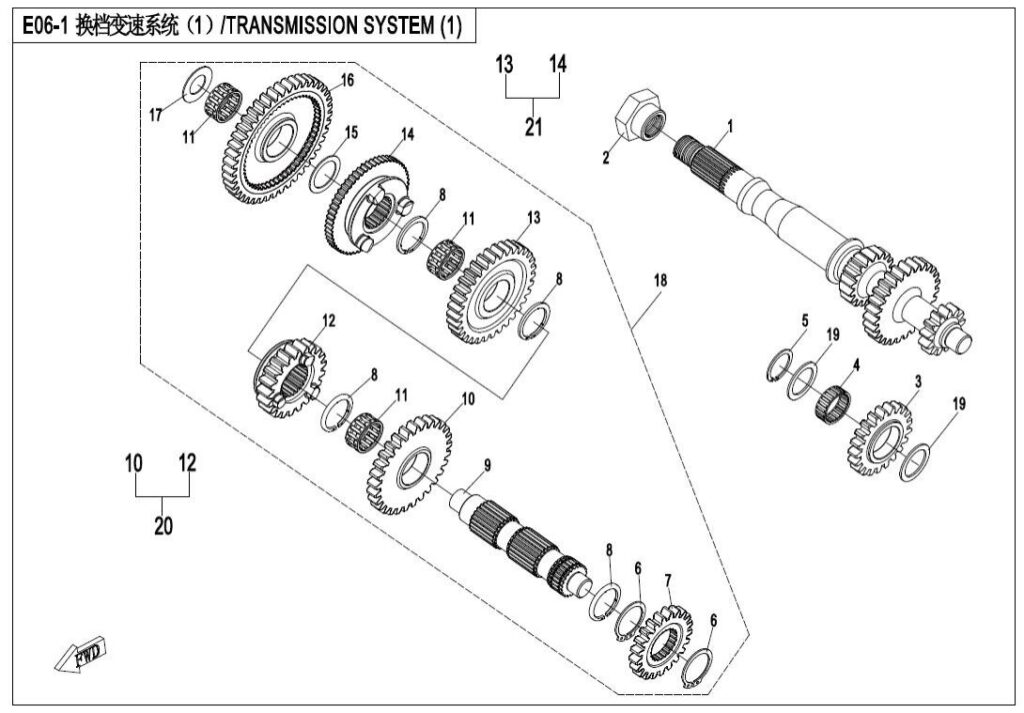

TRANSMISSION SYSTEM(Ⅰ)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN SHAFT, GEARSHIFT 0800-060004 | Skladem | 4 831,82 Kč | ||
| 02 | NUT, MAIN DRIVE SHAFT 0JY0-060001 | Skladem | 139,71 Kč | ||
| 03 | INTERMEDIATE GEAR, REVERSE 0800-060003 | Skladem | 580,32 Kč | ||
| 04 | NEEDLE BEARING 30402-02500 | Skladem | 357,34 Kč | ||
| 05 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 06 | CIRCLIPS FOR SHAFT29 30801-02905 | Skladem | 15,54 Kč | ||
| 07 | GEAR,PARKING 0800-061009 | Skladem | 536,79 Kč | ||
| 08 | CIRCLIP 29 0800-061007 | Skladem | 15,54 Kč | ||
| 09 | DRIVEN SHAFT 0800-061001 | Skladem | 1 258,45 Kč | ||
| 10 | REVERSE DRIVEN GEAR 0JWA-061008 | Skladem | 994,33 Kč | ||
| 11 | NEEDLE BEARING 30402-02402 | Skladem | 77,68 Kč | ||
| 12 | OUTPUT GEAR, DRIVEN SHAFT 0JWA-061006-20000 | Skladem | 854,50 Kč | ||
| 13 | DRIVEN GEAR, HIGH RANGE 0JWA-061005 | Skladem | 994,33 Kč | ||
| 14 | SLIDING BUSH, GEARSHIFT 0JWA-061004-20000 | Skladem | 994,33 Kč | ||
| 15 | WASHER 24.5×33.5×1 0800-061003 | Skladem | 31,07 Kč | ||
| 16 | DRIVEN GEAR, LOW RANGE 0800-061100 | Skladem | 2 454,75 Kč | ||
| 17 | WASHER 17.5×32×1 0800-061002 | Skladem | 31,07 Kč | ||
| 18 | GEARSHIFT DRIVEN SHAFT 0JWA-061000 | Skladem | 8 249,83 Kč | ||
| 19 | WASHER 25×34×1.5 0GR0-061009-00001 | Skladem | 46,61 Kč | ||
| 20 | DRIVEN GEAR ASSY. 0JWA-0610A0-20000 | Skladem | 1 833,30 Kč | ||
| 21 | GEARSHIFT GEAR ASSY 0JWA-0610B0-20000 | Skladem | 1 973,12 Kč | ||
