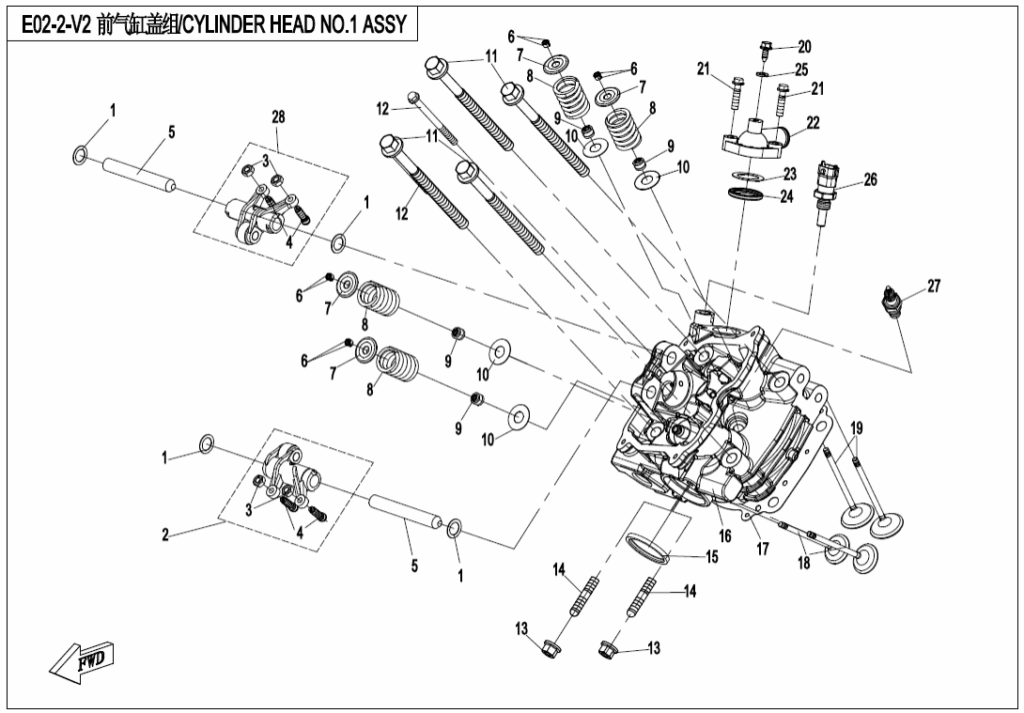

CYLINDER HEAD NO.1 ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | WASHER 12.3×18.5×0.5 0800-022002 | Skladem | 43,52 Kč | ||
| 02 | ROCKER ARM ASSY, AIR EXHAUST 0800-022600-20000 | Skladem | 792,36 Kč | ||
| 03 | ADJUST NUT,VALVE CLEARANCE 0800-022506 | Skladem | 29,02 Kč | ||
| 04 | ADJUST SCREW, VALVE CLEARANCE 0800-022510 | Skladem | 62,15 Kč | ||
| 05 | ROCKER ARM SHAFT 0800-022001 | Skladem | 130,57 Kč | ||
| 06 | LOCK CLIP, VALVE 0800-022016 | Skladem | 62,15 Kč | ||
| 07 | UPPER SEAT, VALVE SPRING 0800-022007 | Skladem | 87,05 Kč | ||
| 08 | SPRING, VALVE 0800-022006 | Skladem | 62,15 Kč | ||
| 09 | SEAL RING, VALVE STEM 0010-022500 | Skladem | 43,52 Kč | ||
| 09 | SEAL RING, VALVE STEM 0010-022500-10000 | Skladem | 46,61 Kč | ||
| 10 | LOWER SEAT, VALVE SPRING 0800-022008 | Skladem | 43,52 Kč | ||
| 11 | BOLT, CYLINDER 0JY0-022003-00001 | Skladem | 101,64 Kč | ||
| 11 | BOLT,CYLINDER 0JY0-022003 | Skladem | 93,22 Kč | ||
| 12 | BOLT M6×85 0060-013021-0030 | Není skladem | |||
| 13 | FLANGE NUT M8 0010-011700-0010 | Skladem | 15,54 Kč | ||
| 14 | STUD M8x42 0180-022003-00001 | Skladem | 31,07 Kč | ||
| 15 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 16 | CYLINDER HEAD 0JY0-022100-10001 | Skladem | 7 830,35 Kč | ||
| 16 | CYLINDER HEAD ASSY. 0JY0-022100-10000 | Skladem | 6 463,14 Kč | ||
| 17 | GASKET, CYLINDER HEAD 0800-022200 | Skladem | 388,41 Kč | ||
| 18 | VALVE, EXHAUST 0800-022005 | Skladem | 279,66 Kč | ||
| 19 | VALVE, INTAKE 0800-022004 | Skladem | 186,44 Kč | ||
| 20 | SELF-TAPPING SCREW 30132-480130010 | Není skladem | |||
| 20 | Šroub (vrut) 30138-550160050 | Není skladem | |||
| 21 | BOLT M6x25 0010-021017-0010 | Skladem | 15,54 Kč | ||
| 22 | HOUSING, THERMOSTAT 0800-022013 | Skladem | 108,75 Kč | ||
| 22 | THERMOSTAT CAP 0800-022013-10000 | Skladem | 145,08 Kč | ||
| 23 | WASHER 20.5×30×0.8 0800-026002 | Skladem | 15,54 Kč | ||
| 24 | SEAL RING 0010-022802 | Skladem | 31,07 Kč | ||
| 25 | WASHER 5.3×11×1.5 0800-022011 | Skladem | 43,52 Kč | ||
| 26 | WATER TEMPERATURE SENSOR 018B-022810 | Skladem | 968,00 Kč | ||
| 27 | ZAPALOVACÍ SVÍČKA 0800-022800 | Skladem | 450,56 Kč | ||
| 28 | ROCKER ARM ASSY, AIR INTAKE 0800-022500-20000 | Skladem | 792,36 Kč | ||
